CellDesigner 4.1 Help

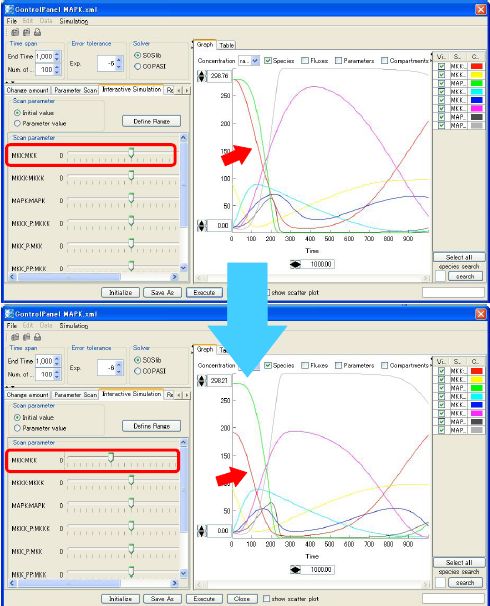

To run interactive simulations:

1. In the ControlPanel, click the Interactive Simulation tab.
2. Select the Initial value or Parameter value option.
3. To change a parameter, slide each slider bar or input a value into a box on the right side of the slider bar for the parameter.


The minimum and maximum values of slider bar were automatically defined based on the initial values of SBML. However, you can change the data range of slider bars.

To change the data range of slider bars:

1. Click the Define Range button.

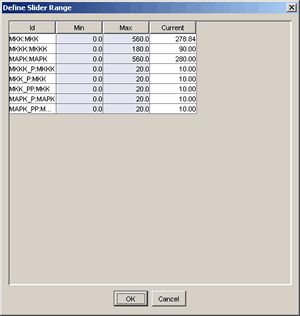

2. In the Define Slider Range dialog, change the minimum and maximum values and click the OK button.
