CellDesigner Help

Edit the contents of Species

The properties of Species added to <Species> by creation of SpeciesAlias can be checked in the [Species] list window.

ID of each Species is assigned automatically by CellDesigner, and the name is attached in accordance with the name specified at creation of SpeciesAlias. (In the case of the protein, the same name as a protein is assigned to the Species) .

To set more detail attributes to the Species:

1. Double-click an object in the list window.
or click with the right mouse button on the target in the draw area, then select [Edit Species].

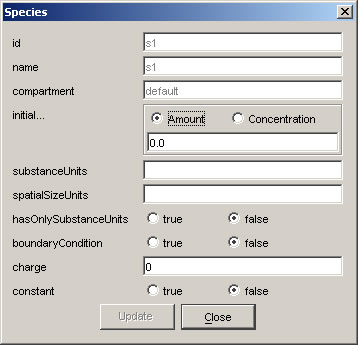

The dialog will popup to edit the contents of each Species.

Each item in this dialog is an item defined as an SBML model.
See also: the reference at http://sbml.org/.

Note 1:
The following items cannot be edited in the dialog: [id], [name], and [compartment].
They are managed by CellDesigner to keep the consistency with the state of the network diagram.
Note 2:
There are items which can be edited directly in-line in the list. (those you can edit by the key.)
When you click on the attributes in the list and cannot input directly, double-click it to open the dialog to edit such attributes.
Note 3:
In "selection / move" mode, you can open the edit dialog by pressing "shift+ double click it.
