CellDesigner Help

Create a Modification Residue/Region

If you are working on a Gene/RNA/Antisense RNA, replace the word "Protein" with "Gene/RNA/Antisense RNA" as you read through.

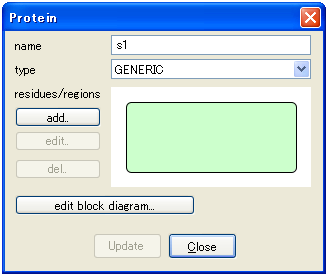

Residues and regions of a Protein can be added in the Protein dialog.

A Protein with a residue

Change the Residue/Region Status (The Change identity of the species dialog)

If you are working on a Gene/RNA/Antisense RNA, replace the word "Protein" with "Gene/RNA/Antisense RNA" as you read through.

To create a Protein residue (The Change identity of the species dialog)

  1. Select a Protein.
  2. Do one of the followings:
    • In the List Area, click Proteins tab, select the Protein to which you want to add the residue, and click Edit button.
    • Click the right mouse button on the target Protein, then select Edit Protein menu.
  3. Protein dialog will pop-up.
  4. Click add... button, and the ModificationResidue/BindingRegion dialog will appear.
  5. In the ModificationResidue/BindingRegion dialog, modify the name, type, size, side, and angle, then click Close.
  6. You can check the added residue or binding region in the preview of the Protein dialog.
  7. Click Update to update the modification, then Close to close the dialog.

To edit/delete a Protein residue

  1. Select a Protein.
  2. Do one of the followings:
    • In the List Area, click Proteins tab, select the Protein to which you want to add the residue, and click Edit button.
    • Click the right mouse button on the target Protein, then select Edit Protein menu.
  3. Protein dialog will pop-up.
  4. Click the residue or binding region to edit/delete.
  5. Select edit... to edit the residue or binding region.
  6. In the ModificationResidue/BindingRegion dialog, edit properties, and click Close.
  7. Select del... to delete the residue or binding region.
  8. Click Update.

To change the residue status

Change the Residue/Region Status
